1O9F

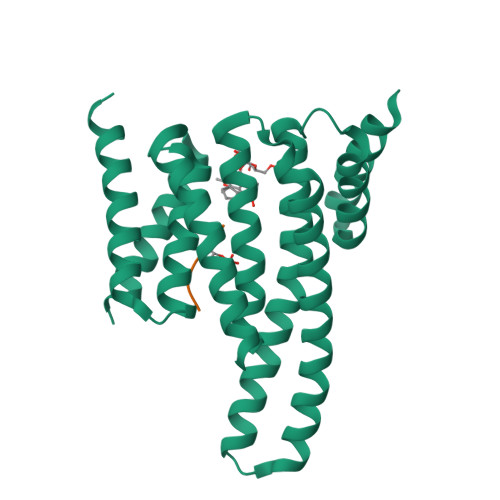

Structural view of a fungal toxin acting on a 14-3-3 regulatory complex


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.263
  • R-Value Work: 0.224
  • R-Value Observed: 0.224

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history


Literature

Structural View of a Fungal Toxin Acting on a 14-3-3 Regulatory Complex

Wurtele, M.Jelich-Ottmann, C.Wittinghofer, A.Oecking, C.

(2003) EMBO J 22: 987

  • DOI: https://doi.org/10.1093/emboj/cdg104
  • Primary Citation of Related Structures:
    1O9C, 1O9D, 1O9E, 1O9F

  • PubMed Abstract:

    The fungal phytotoxin fusicoccin stabilizes the interaction between the C-terminus of the plant plasma membrane H(+)-ATPase and 14-3-3 proteins, thus leading to permanent activation of the proton pump. This results in an irreversible opening of the stomatal pore, followed by wilting of plants. Here, we report the crystal structure of the ternary complex between a plant 14-3-3 protein, fusicoccin and a phosphopeptide derived from the C-terminus of the H(+)-ATPase. Comparison with the corresponding binary 14-3-3 complexes indicates no major conformational change induced by fusicoccin. The compound rather fills a cavity in the protein-phosphopeptide interaction surface. Isothermal titration calorimetry indicates that the toxin alone binds only weakly to 14-3-3 and that peptide and toxin mutually increase each others' binding affinity approximately 90-fold. These results are important for herbicide development but might have general implications for drug development, since rather than inhibiting protein-protein interactions, which is difficult to accomplish, it might be easier to reverse the strategy and stabilize protein-protein complexes. As the fusicoccin interaction shows, only low-affinity interactions would be required for this strategy.


  • Organizational Affiliation

    Max-Planck Institut für Molekulare Physiologie, Abteilung Strukturelle Biologie, Otto-Hahn-Strasse 11, D-44227 Dortmund, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
14-3-3-LIKE PROTEIN C260Nicotiana tabacumMutation(s): 0
UniProt
Find proteins for P93343 (Nicotiana tabacum)
Explore P93343
Go to UniProtKB:  P93343
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP93343
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
PLASMA MEMBRANE H+ ATPASEB [auth P]5Nicotiana plumbaginifoliaMutation(s): 0
UniProt
Find proteins for Q40409 (Nicotiana plumbaginifolia)
Explore Q40409
Go to UniProtKB:  Q40409
Entity Groups
UniProt GroupQ40409
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
FSC
Query on FSC

Download Ideal Coordinates CCD File
C [auth A]FUSICOCCIN
C36 H56 O12
KXTYBXCEQOANSX-WYKQKOHHSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
TPO
Query on TPO
B [auth P]L-PEPTIDE LINKINGC4 H10 N O6 PTHR
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.70 Å
  • R-Value Free: 0.263
  • R-Value Work: 0.224
  • R-Value Observed: 0.224
  • Space Group: P 65 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 108.8α = 90
b = 108.8β = 90
c = 135.7γ = 120
Software Package:
Software NamePurpose
CNSrefinement
XDSdata reduction
XDSdata scaling
AMoREphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2003-03-06
    Type: Initial release
  • Version 1.1: 2011-05-08
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2023-12-13
    Changes: Data collection, Database references, Derived calculations, Other, Refinement description
  • Version 1.4: 2024-11-06
    Changes: Structure summary
