3BMO

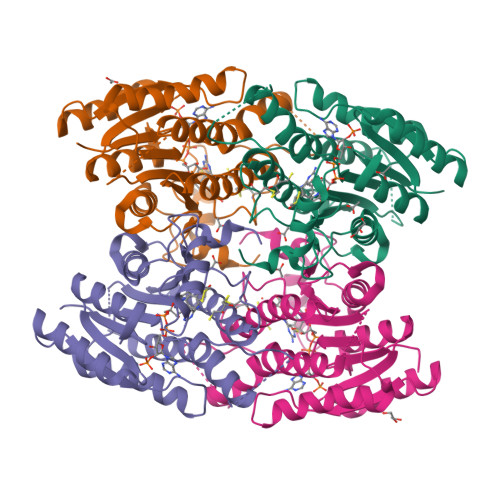

Structure of Pteridine Reductase 1 (PTR1) from Trypanosoma brucei in ternary complex with cofactor (NADP+) and inhibitor (Compound AX4)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.150
  • R-Value Work: 0.118
  • R-Value Observed: 0.120

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structure-based design of pteridine reductase inhibitors targeting african sleeping sickness and the leishmaniases.

Tulloch, L.B.Martini, V.P.Iulek, J.Huggan, J.K.Lee, J.H.Gibson, C.L.Smith, T.K.Suckling, C.J.Hunter, W.N.

(2010) J Med Chem 53: 221-229

  • DOI: https://doi.org/10.1021/jm901059x
  • Primary Citation of Related Structures:
    3BMC, 3BMN, 3BMO, 3BMQ, 3JQ6, 3JQ7, 3JQ8, 3JQ9, 3JQA, 3JQB, 3JQC, 3JQD, 3JQE, 3JQF, 3JQG

  • PubMed Abstract:

    Pteridine reductase (PTR1) is a target for drug development against Trypanosoma and Leishmania species, parasites that cause serious tropical diseases and for which therapies are inadequate. We adopted a structure-based approach to the design of novel PTR1 inhibitors based on three molecular scaffolds. A series of compounds, most newly synthesized, were identified as inhibitors with PTR1-species specific properties explained by structural differences between the T. brucei and L. major enzymes. The most potent inhibitors target T. brucei PTR1, and two compounds displayed antiparasite activity against the bloodstream form of the parasite. PTR1 contributes to antifolate drug resistance by providing a molecular bypass of dihydrofolate reductase (DHFR) inhibition. Therefore, combining PTR1 and DHFR inhibitors might improve therapeutic efficacy. We tested two new compounds with known DHFR inhibitors. A synergistic effect was observed for one particular combination highlighting the potential of such an approach for treatment of African sleeping sickness.


  • Organizational Affiliation

    Division of Biological Chemistry and Drug Discovery, College of Life Sciences, University of Dundee, Dundee DD15EH, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Pteridine reductase
A, C, D
288Trypanosoma brucei bruceiMutation(s): 0
Gene Names: PTR1
UniProt
Find proteins for O76290 (Trypanosoma brucei brucei)
Explore O76290
Go to UniProtKB:  O76290
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO76290
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Pteridine reductase288Trypanosoma brucei bruceiMutation(s): 0
Gene Names: PTR1
UniProt
Find proteins for O76290 (Trypanosoma brucei brucei)
Explore O76290
Go to UniProtKB:  O76290
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO76290
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 7 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAP
Query on NAP

Download Ideal Coordinates CCD File
BA [auth D],
I [auth A],
O [auth B],
W [auth C]
NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
C21 H28 N7 O17 P3
XJLXINKUBYWONI-NNYOXOHSSA-N
AX4
Query on AX4

Download Ideal Coordinates CCD File
CA [auth D],
J [auth A],
P [auth B],
X [auth C]
6-[(4-methylphenyl)sulfanyl]pyrimidine-2,4-diamine
C11 H12 N4 S
HJJXDVNITYURLZ-UHFFFAOYSA-N
DTT
Query on DTT

Download Ideal Coordinates CCD File
DA [auth D],
K [auth A],
Q [auth B],
Y [auth C]
2,3-DIHYDROXY-1,4-DITHIOBUTANE
C4 H10 O2 S2
VHJLVAABSRFDPM-IMJSIDKUSA-N
D1D
Query on D1D

Download Ideal Coordinates CCD File
EA [auth D],
L [auth A],
R [auth B],
Z [auth C]
(4S,5S)-1,2-DITHIANE-4,5-DIOL
C4 H8 O2 S2
YPGMOWHXEQDBBV-QWWZWVQMSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
M [auth A],
S [auth B],
T [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
ACT
Query on ACT

Download Ideal Coordinates CCD File
AA [auth D]
E [auth A]
F [auth A]
G [auth A]
N [auth B]
AA [auth D],
E [auth A],
F [auth A],
G [auth A],
N [auth B],
U [auth C],
V [auth C]
ACETATE ION
C2 H3 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-M
NA
Query on NA

Download Ideal Coordinates CCD File
H [auth A]SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
CSX
Query on CSX
B
L-PEPTIDE LINKINGC3 H7 N O3 SCYS
Binding Affinity Annotations
IDSourceBinding Affinity
AX4 PDBBind:  3BMO Ki: 5400 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free: 0.150
  • R-Value Work: 0.118
  • R-Value Observed: 0.120
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 74.73α = 90
b = 90.987β = 115.79
c = 82.818γ = 90
Software Package:
Software NamePurpose
MOSFLMdata reduction
SCALAdata scaling
MOLREPphasing
REFMACrefinement
PDB_EXTRACTdata extraction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2008-12-16
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Advisory, Version format compliance
