4CE9

Interrogating HIV integrase for compounds that bind- a SAMPL challenge


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.213
  • R-Value Work: 0.176
  • R-Value Observed: 0.178

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Interrogating HIV Integrase for Compounds that Bind- a Sampl Challenge.

Peat, T.S.Dolezal, O.Newman, J.Mobley, D.Deadman, J.J.

(2014) J Comput Aided Mol Des 28: 347

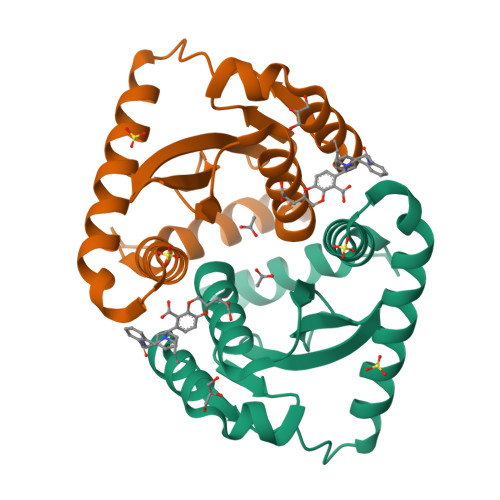

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
INTEGRASE
A, B
183Human immunodeficiency virus 1Mutation(s): 3
EC: 2.7.7.7
UniProt
Find proteins for P12497 (Human immunodeficiency virus type 1 group M subtype B (isolate NY5))
Explore P12497
Go to UniProtKB:  P12497
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP12497
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
O3N
Query on O3N

Download Ideal Coordinates CCD File
G [auth A],
L [auth B]
(2S)-2-(2-carboxyethyl)-6-{[{2-[(cyclohexylmethyl)carbamoyl]benzyl}(prop-2-en-1-yl)amino]methyl}-2,3-dihydro-1,4-benzodioxine-5-carboxylic acid
C31 H38 N2 O7
NZBPOEFEMNTREQ-DEOSSOPVSA-N
SO4
Query on SO4

Download Ideal Coordinates CCD File
C [auth A],
D [auth A],
H [auth B],
I [auth B]
SULFATE ION
O4 S
QAOWNCQODCNURD-UHFFFAOYSA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
F [auth A],
K [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
ACY
Query on ACY

Download Ideal Coordinates CCD File
E [auth A],
J [auth B]
ACETIC ACID
C2 H4 O2
QTBSBXVTEAMEQO-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.213
  • R-Value Work: 0.176
  • R-Value Observed: 0.178
  • Space Group: P 31
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 70.79α = 90
b = 70.79β = 90
c = 66.899γ = 120
Software Package:
Software NamePurpose
REFMACrefinement
MOSFLMdata reduction
SCALAdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

  • Released Date: 2013-11-20
  • Deposition Author(s): Peat, T.S.

Revision History  (Full details and data files)

  • Version 1.0: 2013-11-20
    Type: Initial release
  • Version 1.1: 2014-02-26
    Changes: Database references
  • Version 1.2: 2014-06-25
    Changes: Database references
  • Version 1.3: 2023-12-20
    Changes: Data collection, Database references, Derived calculations, Other, Refinement description
