9G2C | pdb_00009g2c

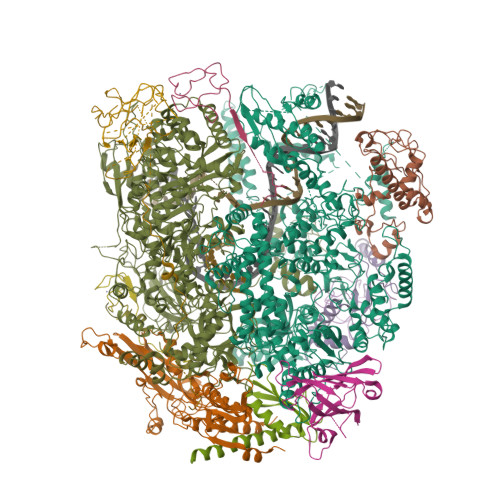

Yeast RNA polymerase I elongation complex stalled by an apurinic site, open state


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Cryo-EM uncovers a sequential mechanism for RNA polymerase I pausing and stalling at abasic DNA lesions.

Santos-Aledo, A.Plaza-Pegueroles, A.Sanz-Murillo, M.Ruiz, F.M.Hou, P.Xu, J.Gil-Carton, D.Wang, D.Fernandez-Tornero, C.

(2025) Nat Commun 16: 5254-5254

  • DOI: https://doi.org/10.1038/s41467-025-60536-4
  • Primary Citation of Related Structures:
    9G1V, 9G1X, 9G23, 9G24, 9G26, 9G27, 9G29, 9G2B, 9G2C

  • PubMed Abstract:

    During synthesis of the ribosomal RNA precursor, RNA polymerase I (Pol I) monitors DNA integrity but its response to DNA damage remains poorly studied. Abasic sites are among the most prevalent DNA lesions in eukaryotic cells, and their detection is critical for cell survival. We report cryo-EM structures of Pol I in different stages of stalling at abasic sites, supported by in vitro transcription studies. Slow nucleotide addition opposite abasic sites occurs through base sandwiching between the RNA 3'-end and the Pol I bridge helix. Templating abasic sites can also cause Pol I cleft opening, which enables the A12 subunit to access the active center. Nucleotide addition opposite the lesion induces a translocation intermediate where DNA bases tilt to form hydrogen bonds with the new RNA base. These findings reveal unique mechanisms of Pol I stalling at abasic sites, differing from arrest by bulky lesions or abasic site handling by RNA polymerase II.


  • Organizational Affiliation

    Centro de Investigaciones Biológicas Margarita Salas (CIB), CSIC, Madrid, Spain.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit RPA1901,664Saccharomyces cerevisiaeMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for P10964 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P10964
Go to UniProtKB:  P10964
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP10964
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit RPA1351,203Saccharomyces cerevisiaeMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for P22138 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22138
Go to UniProtKB:  P22138
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22138
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I and III subunit RPAC1335Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P07703 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P07703
Go to UniProtKB:  P07703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP07703
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

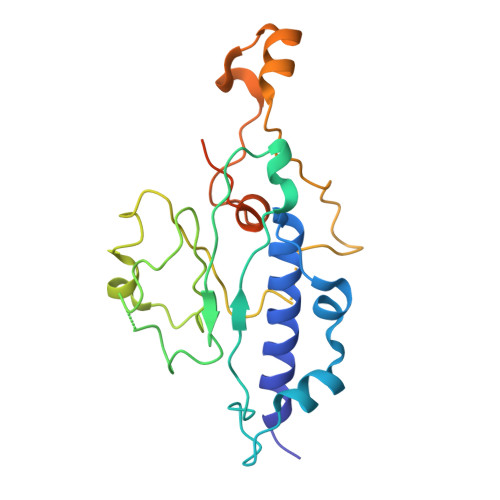

DNA-directed RNA polymerases I, II, and III subunit RPABC1D [auth E]215Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P20434 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P20434
Go to UniProtKB:  P20434
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20434
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC2E [auth F]155Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P20435 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P20435
Go to UniProtKB:  P20435
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20435
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

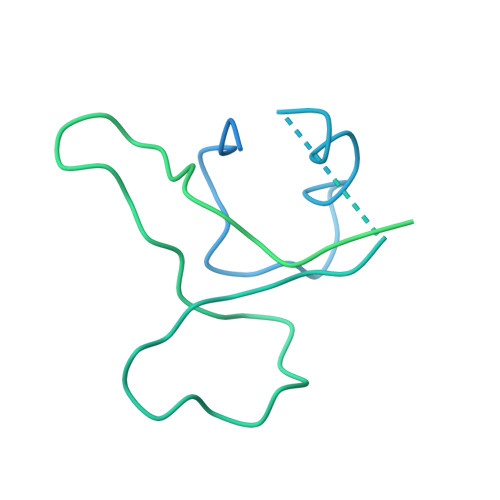

DNA-directed RNA polymerase I subunit RPA43F [auth G]326Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P46669 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P46669
Go to UniProtKB:  P46669
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP46669
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC3G [auth H]146Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P20436 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P20436
Go to UniProtKB:  P20436
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20436
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

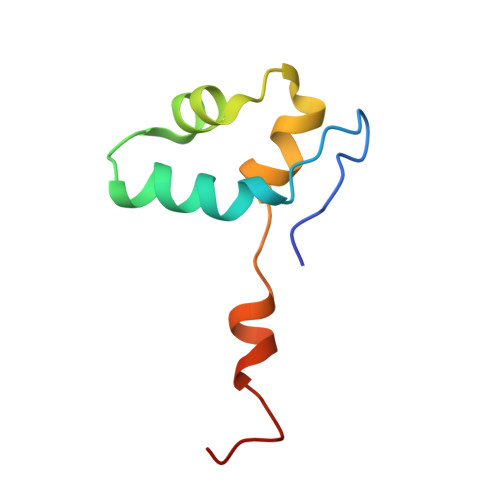

DNA-directed RNA polymerase I subunit RPA12H [auth I]125Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P32529 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P32529
Go to UniProtKB:  P32529
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP32529
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC5I [auth J]70Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P22139 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22139
Go to UniProtKB:  P22139
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22139
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I and III subunit RPAC2J [auth K]142Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P28000 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P28000
Go to UniProtKB:  P28000
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28000
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

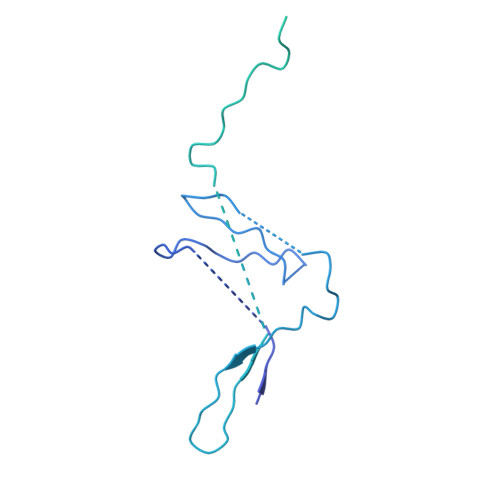

DNA-directed RNA polymerases I, II, and III subunit RPABC4K [auth L]70Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P40422 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P40422
Go to UniProtKB:  P40422
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP40422
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit RPA49L [auth M]415Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for Q01080 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q01080
Go to UniProtKB:  Q01080
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ01080
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase I subunit RPA34M [auth N]233Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P47006 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P47006
Go to UniProtKB:  P47006
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP47006
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.50 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONRELION
RECONSTRUCTIONcryoSPARC
RECONSTRUCTIONcrYOLO
RECONSTRUCTIONCTFFIND
RECONSTRUCTIONGctf

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Spanish Ministry of Science, Innovation, and UniversitiesSpain--

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-18
    Type: Initial release
