7JYU

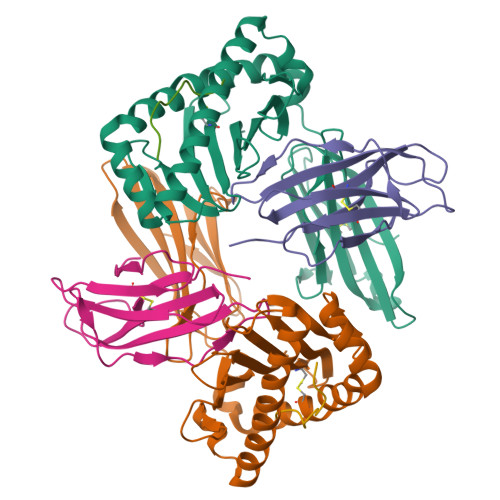

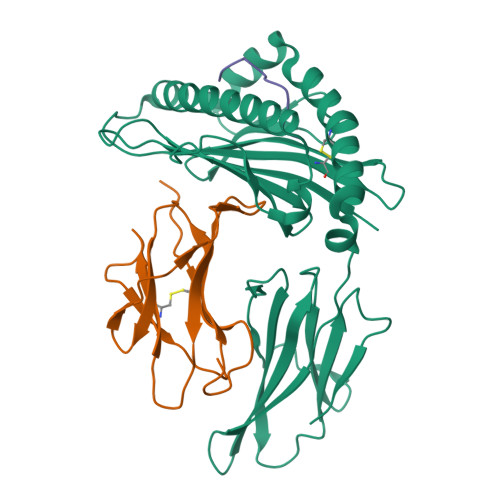

Crystal Structure of HLA-A*2402 in complex with IYFSPIRVTF, an 10-mer epitope from Influenza B virus


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free: 0.259
  • R-Value Work: 0.189
  • R-Value Observed: 0.193

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

CD8 + T cell landscape in Indigenous and non-Indigenous people restricted by influenza mortality-associated HLA-A*24:02 allomorph.

Hensen, L.Illing, P.T.Bridie Clemens, E.Nguyen, T.H.O.Koutsakos, M.van de Sandt, C.E.Mifsud, N.A.Nguyen, A.T.Szeto, C.Chua, B.Y.Halim, H.Rizzetto, S.Luciani, F.Loh, L.Grant, E.J.Saunders, P.M.Brooks, A.G.Rockman, S.Kotsimbos, T.C.Cheng, A.C.Richards, M.Westall, G.P.Wakim, L.M.Loudovaris, T.Mannering, S.I.Elliott, M.Tangye, S.G.Jackson, D.C.Flanagan, K.L.Rossjohn, J.Gras, S.Davies, J.Miller, A.Tong, S.Y.C.Purcell, A.W.Kedzierska, K.

(2021) Nat Commun 12: 2931-2931

  • DOI: https://doi.org/10.1038/s41467-021-23212-x
  • Primary Citation of Related Structures:
    6XQA, 7JYU, 7JYV, 7JYW, 7JYX

  • PubMed Abstract:

    Indigenous people worldwide are at high risk of developing severe influenza disease. HLA-A*24:02 allele, highly prevalent in Indigenous populations, is associated with influenza-induced mortality, although the basis for this association is unclear. Here, we define CD8 + T-cell immune landscapes against influenza A (IAV) and B (IBV) viruses in HLA-A*24:02-expressing Indigenous and non-Indigenous individuals, human tissues, influenza-infected patients and HLA-A*24:02-transgenic mice. We identify immunodominant protective CD8 + T-cell epitopes, one towards IAV and six towards IBV, with A24/PB2 550-558 -specific CD8 + T cells being cross-reactive between IAV and IBV. Memory CD8 + T cells towards these specificities are present in blood (CD27 + CD45RA - phenotype) and tissues (CD103 + CD69 + phenotype) of healthy individuals, and effector CD27 - CD45RA - PD-1 + CD38 + CD8 + T cells in IAV/IBV patients. Our data show influenza-specific CD8 + T-cell responses in Indigenous Australians, and advocate for T-cell-mediated vaccines that target and boost the breadth of IAV/IBV-specific CD8 + T cells to protect high-risk HLA-A*24:02-expressing Indigenous and non-Indigenous populations from severe influenza disease.


  • Organizational Affiliation

    Department of Microbiology and Immunology, University of Melbourne, at the Peter Doherty Institute for Infection and Immunity, Parkville, VIC, Australia.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
MHC class I antigen
A, D
278Homo sapiensMutation(s): 0
Gene Names: HLA-A
UniProt
Find proteins for A0A5H2UYS3 (Homo sapiens)
Explore A0A5H2UYS3
Go to UniProtKB:  A0A5H2UYS3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5H2UYS3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-2-microglobulin
B, E
100Homo sapiensMutation(s): 0
Gene Names: B2MCDABP0092HDCMA22P
UniProt & NIH Common Fund Data Resources
Find proteins for P61769 (Homo sapiens)
Explore P61769
Go to UniProtKB:  P61769
PHAROS:  P61769
GTEx:  ENSG00000166710
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61769
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
NP-164-173 peptide from influenza B, IYFSPIRVTF
C, F
10Influenza A virusMutation(s): 0
UniProt
Find proteins for C0RVT5 (Influenza B virus (strain B/Malaysia/2506/2004))
Explore C0RVT5
Go to UniProtKB:  C0RVT5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC0RVT5
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
G [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.75 Å
  • R-Value Free: 0.259
  • R-Value Work: 0.189
  • R-Value Observed: 0.193
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 79.921α = 90
b = 120.246β = 90
c = 187.796γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
PDB_EXTRACTdata extraction
XDSdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Health and Medical Research Council (NHMRC, Australia)Australia1122524
National Health and Medical Research Council (NHMRC, Australia)Australia1159272

Revision History  (Full details and data files)

  • Version 1.0: 2021-04-14
    Type: Initial release
  • Version 1.1: 2021-06-23
    Changes: Database references
  • Version 1.2: 2023-10-18
    Changes: Data collection, Database references, Refinement description
