1SZ8

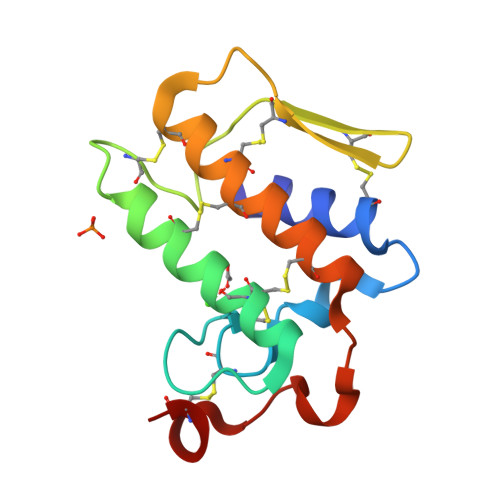

Crystal Structure of an Acidic Phospholipase A2 from Naja Naja Sagittifera at 1.5 A resolution

• PDB DOI: https://doi.org/10.2210/pdb1SZ8/pdb
• Entry: 1SZ8 supersedes: 1LFF

• Classification: HYDROLASE
• Organism(s): Naja sagittifera
• Mutation(s): No


• Deposited: 2004-04-05 Released: 2004-04-20
• Deposition Author(s): Singh, R.K., Sharma, S., Jabeen, T., Kaur, P., Singh, T.P.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.50 Å
• R-Value Free: 0.233
• R-Value Work: 0.191
• R-Value Observed: 0.192

Starting Model: experimental

Literature

Crystal Structure of an Acidic Phospholipase A2 from Naja Naja Sagittifera at 1.5 A Resolution

Singh, R.K., Sharma, S., Jabeen, T., Kaur, P., Singh, T.P.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 13.38 kDa
• Atom Count: 1,066
• Modelled Residue Count: 119
• Deposited Residue Count: 119
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Phospholipase A2 isoform 3	A	119	Naja sagittifera	Mutation(s): 0  EC: 3.1.1.4
UniProt
Find proteins for P60045 (Naja sagittifera) Explore P60045  Go to UniProtKB:  P60045

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
PO4	C [auth A]	PHOSPHATE ION O4 P NBIIXXVUZAFLBC-UHFFFAOYSA-K
ACY	D [auth A]	ACETIC ACID C2 H4 O2 QTBSBXVTEAMEQO-UHFFFAOYSA-N
CA	B [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.50 Å
• R-Value Free: 0.233
• R-Value Work: 0.191
• R-Value Observed: 0.192
• Space Group: P 4₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.017	α = 90
b = 42.017	β = 90
c = 64.451	γ = 90

Software Package:

Software Name	Purpose
DENZO	data reduction
SCALEPACK	data scaling
AMoRE	phasing
REFMAC	refinement

Structure Validation

Entry History

Deposition Data

• Released Date: 2004-04-20
Deposition Author(s): Singh, R.K., Sharma, S., Jabeen, T., Kaur, P., Singh, T.P.
• This entry supersedes: 1LFF

Revision History

• Version 1.0: 2004-04-20
  Type: Initial release

• Version 1.1: 2008-04-30
  Changes: Version format compliance
• Version 1.2: 2011-07-13
  Changes: Version format compliance
• Version 1.3: 2014-04-16
  Changes: Refinement description
• Version 1.4: 2018-02-07
  Changes: Experimental preparation
• Version 1.5: 2023-10-25
  Changes: Data collection, Database references, Derived calculations, Refinement description
• Version 1.6: 2024-10-23
  Changes: Structure summary
