1UMG

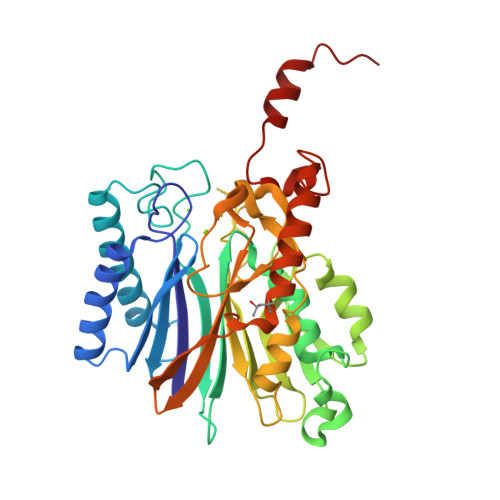

Crystal structure of fructose-1,6-bisphosphatase


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.197
  • R-Value Work: 0.183
  • R-Value Observed: 0.183

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 2.0 of the entry. See complete history


Literature

The first crystal structure of the novel class of fructose-1,6-bisphosphatase present in thermophilic archaea.

Nishimasu, H.Fushinobu, S.Shoun, H.Wakagi, T.

(2004) Structure 12: 949-959

  • DOI: https://doi.org/10.1016/j.str.2004.03.026
  • Primary Citation of Related Structures:
    1UMG

  • PubMed Abstract:

    As the first structure of the novel class of fructose-1,6-bisphosphatase (FBPase) present in thermophilic archaea, we solved the crystal structure of the ST0318 gene product (St-Fbp) of Sulfolobus tokodaii strain 7. The St-Fbp structure comprises a homooctamer of the 422 point-group. The protein folds as a four-layer alpha-beta-beta-alpha sandwich with a novel topology, which is completely different from the sugar phosphatase fold. The structure contains an unhydrolyzed FBP molecule in the open-keto form, as well as four hexacoordinated magnesium ions around the 1-phosphoryl group of FBP. The arrangement of the catalytic side chains and metal ligands is consistent with the three-metal ion assisted catalysis proposed for conventional FBPases. The structure provides an insight into the structural basis of the strict substrate specificity of St-Fbp.


  • Organizational Affiliation

    Department of Biotechnology, The University of Tokyo, 1-1-1 Yayoi, Bunkyo-ku, Tokyo 113-8657, Japan.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
385aa long conserved hypothetical protein362Sulfurisphaera tokodaii str. 7Mutation(s): 0
Gene Names: ST0318
EC: 3.1.3.11 (PDB Primary Data), 4.1.2.13 (UniProt)
UniProt
Find proteins for F9VMT6 (Sulfurisphaera tokodaii (strain DSM 16993 / JCM 10545 / NBRC 100140 / 7))
Explore F9VMT6
Go to UniProtKB:  F9VMT6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupF9VMT6
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.197
  • R-Value Work: 0.183
  • R-Value Observed: 0.183
  • Space Group: I 4 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 111.778α = 90
b = 111.778β = 90
c = 153.174γ = 90
Software Package:
Software NamePurpose
CNSrefinement
HKL-2000data reduction
SCALEPACKdata scaling
SOLVEphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2004-07-13
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Derived calculations, Version format compliance
  • Version 1.3: 2016-12-21
    Changes: Structure summary
  • Version 2.0: 2023-12-27
    Changes: Atomic model, Data collection, Database references, Derived calculations
