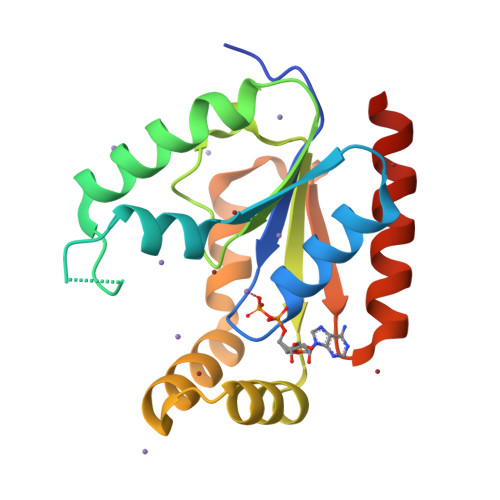

1Y63 | pdb_00001y63

Initial crystal structural analysis of a probable kinase from Leishmania major Friedlin

PDB DOI: https://doi.org/10.2210/pdb1Y63/pdb

Classification: Structural Genomics, Unknown Function
Organism(s): Leishmania major strain Friedlin
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2004-12-03 Released: 2005-01-04
Deposition Author(s): Robien, M.A., Hol, W.G.J., Structural Genomics of Pathogenic Protozoa Consortium (SGPP)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.70 Å
R-Value Free:
0.196 (Depositor), 0.210 (DCC)
R-Value Work:
0.165 (Depositor), 0.180 (DCC)
R-Value Observed:
0.167 (Depositor)

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.4 of the entry. See complete history.

Literature

Crystal structural analysis of a probable kinase from Leishmania major Friedlin

Robien, M.A., Hol, W.G.J., Structural Genomics of Pathogenic Protozoa Consortium (SGPP)

To be published.

Macromolecule Content

Total Structure Weight: 22.57 kDa
Atom Count: 1,593
Modelled Residue Count: 168
Deposited Residue Count: 184
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Lmaj004144AAA protein	A	184	Leishmania major strain Friedlin	Mutation(s): 0 Gene Names: LmjF30.1890 EC: 2.7.4.3
UniProt
Find proteins for Q4Q7A6 (Leishmania major) Explore Q4Q7A6 Go to UniProtKB: Q4Q7A6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q4Q7A6
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP Query on ADP Download Ideal Coordinates CCD File SDF format, chain Q [auth A] MOL2 format, chain Q [auth A] mmCIF format, chain Q [auth A]	Q [auth A]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain Q [auth A] Interactions & Density Focus chain Q [auth A]
BR Query on BR Download Ideal Coordinates CCD File SDF format, chain M [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain N [auth A] MOL2 format, chain M [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain N [auth A] mmCIF format, chain M [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain N [auth A]	J [auth A], K [auth A], L [auth A], M [auth A], N [auth A]	BROMIDE ION Br CPELXLSAUQHCOX-UHFFFAOYSA-M		Interactions Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Interactions & Density Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A]
MN Query on MN Download Ideal Coordinates CCD File SDF format, chain B [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain I [auth A] SDF format, chain C [auth A] SDF format, chain H [auth A] MOL2 format, chain B [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain I [auth A] MOL2 format, chain C [auth A] MOL2 format, chain H [auth A] mmCIF format, chain B [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain I [auth A] mmCIF format, chain C [auth A] mmCIF format, chain H [auth A]	B [auth A] C [auth A] D [auth A] E [auth A] F [auth A] B [auth A], C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth A]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain O [auth A] SDF format, chain P [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A]	O [auth A], P [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain O [auth A] Focus chain P [auth A] Interactions & Density Focus chain O [auth A] Focus chain P [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.70 Å
R-Value Free: 0.196 (Depositor), 0.210 (DCC)
R-Value Work: 0.165 (Depositor), 0.180 (DCC)
R-Value Observed: 0.167 (Depositor)

Space Group: P 4 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 107.116	α = 90
b = 107.116	β = 90
c = 35.216	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
MOSFLM	data reduction
CCP4	data scaling
SHARP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Released Date: 2005-01-04

Deposition Author(s):

Robien, M.A.

Hol, W.G.J.

Structural Genomics of Pathogenic Protozoa Consortium (SGPP)

Revision History (Full details and data files)

Version 1.0: 2005-01-04
Type: Initial release
Version 1.1: 2008-04-30
Changes: Version format compliance
Version 1.2: 2011-07-13
Changes: Advisory, Source and taxonomy, Version format compliance
Version 1.3: 2016-09-28
Changes: Other
Version 1.4: 2024-02-14
Changes: Data collection, Database references, Derived calculations
