3JSL

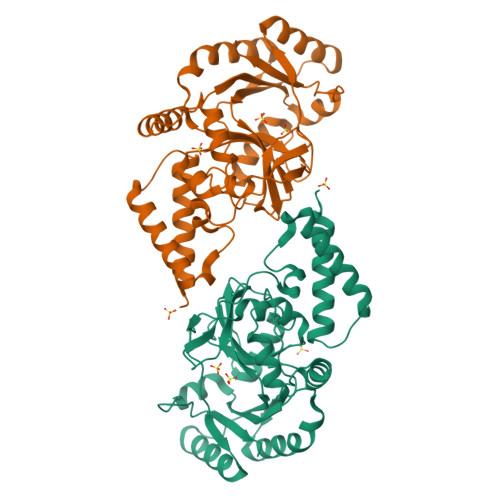

Crystal structure of the adenylation domain of NAD+-dependent DNA ligase from Staphylococcus aureus


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.250
  • R-Value Work: 0.196
  • R-Value Observed: 0.198

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structure of the adenylation domain of NAD(+)-dependent DNA ligase from Staphylococcus aureus.

Han, S.Chang, J.S.Griffor, M.

(2009) Acta Crystallogr Sect F Struct Biol Cryst Commun 65: 1078-1082

  • DOI: https://doi.org/10.1107/S1744309109036872
  • Primary Citation of Related Structures:
    3JSL, 3JSN

  • PubMed Abstract:

    DNA ligase catalyzes phosphodiester-bond formation between immediately adjacent 5'-phosphate and 3'-hydroxyl groups in double-stranded DNA and plays a central role in many cellular and biochemical processes, including DNA replication, repair and recombination. Bacterial NAD(+)-dependent DNA ligases have been extensively characterized as potential antibacterial targets because of their essentiality and their structural distinction from human ATP-dependent DNA ligases. The high-resolution structure of the adenylation domain of Staphylococcus aureus NAD(+)-dependent DNA ligase establishes the conserved domain architecture with other bacterial adenylation domains. Two apo crystal structures revealed that the active site possesses the preformed NAD(+)-binding pocket and the 'C2 tunnel' lined with hydrophobic residues: Leu80, Phe224, Leu287, Phe295 and Trp302. The C2 tunnel is unique to bacterial DNA ligases and the Leu80 side chain at the mouth of the tunnel points inside the tunnel and forms a narrow funnel in the S. aureus DNA ligase structure. Taken together with other DNA ligase structures, the S. aureus DNA ligase structure provides a basis for a more integrated understanding of substrate recognition and catalysis and will be also be of help in the development of small-molecule inhibitors.


  • Organizational Affiliation

    Pfizer Inc., Groton, Connecticut 06340, USA. seungil.han@pfizer.com


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA ligase
A, B
318Staphylococcus aureusMutation(s): 0
Gene Names: LIGA
EC: 6.5.1.2
UniProt
Find proteins for Q9AIU7 (Staphylococcus aureus)
Explore Q9AIU7
Go to UniProtKB:  Q9AIU7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9AIU7
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.250
  • R-Value Work: 0.196
  • R-Value Observed: 0.198
  • Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 40.152α = 90.1
b = 49.193β = 103.2
c = 88.039γ = 90.01
Software Package:
Software NamePurpose
HKL-2000data collection
PHASERphasing
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2009-12-15
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2024-02-21
    Changes: Data collection, Database references, Derived calculations
