3L6A | pdb_00003l6a

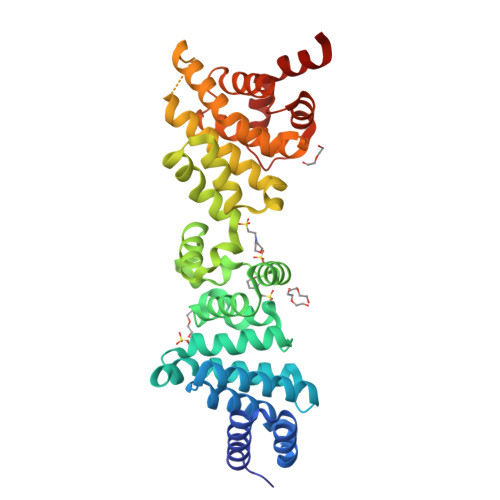

Crystal structure of the C-terminal region of Human p97

• PDB DOI: https://doi.org/10.2210/pdb3L6A/pdb

• Classification: TRANSLATION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2009-12-23 Released: 2010-04-28
• Deposition Author(s): Fan, S.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:
  0.250 (Depositor), 0.200 (DCC)
• R-Value Work:
  0.200 (Depositor), 0.200 (DCC)
• R-Value Observed:
  0.203 (Depositor)

Literature

Crystal structure of the C-terminal region of human p97/DAP5.

Fan, S., Jia, M.Z., Gong, W.

(2010) Proteins 78: 2385-2390

• PubMed: 20544972
• DOI: https://doi.org/10.1002/prot.22735
• Primary Citation of Related Structures:
  3L6A

---

Organizational Affiliation:

Institute of Biophysics, Chinese Academy of Sciences, Beijing 100101, People's Republic of China.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 43.08 kDa
• Atom Count: 3,124
• Modelled Residue Count: 350
• Deposited Residue Count: 364
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Eukaryotic translation initiation factor 4 gamma 2	A	364	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P78344 (Homo sapiens) Explore P78344  Go to UniProtKB:  P78344
PHAROS:  P78344 GTEx:  ENSG00000110321

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
MES	B [auth A], C [auth A]	2-(N-MORPHOLINO)-ETHANESULFONIC ACID C6 H13 N O4 S SXGZJKUKBWWHRA-UHFFFAOYSA-N
PG4	D [auth A], E [auth A]	TETRAETHYLENE GLYCOL C8 H18 O5 UWHCKJMYHZGTIT-UHFFFAOYSA-N
PEG	F [auth A]	DI(HYDROXYETHYL)ETHER C4 H10 O3 MTHSVFCYNBDYFN-UHFFFAOYSA-N
SO4	G [auth A], H [auth A]	SULFATE ION O4 S QAOWNCQODCNURD-UHFFFAOYSA-L

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.00 Å
• R-Value Free:  0.250 (Depositor), 0.200 (DCC)
• R-Value Work:  0.200 (Depositor), 0.200 (DCC)
• R-Value Observed: 0.203 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 31.084	α = 90
b = 102.27	β = 90
c = 112.973	γ = 90

Software Package:

Software Name	Purpose
DENZO	data reduction
SCALEPACK	data scaling
SOLVE	phasing
RESOLVE	phasing
REFMAC	refinement
PDB_EXTRACT	data extraction
MAR345dtb	data collection

Structure Validation

Entry History

Deposition Data

• Released Date: 2010-04-28
Deposition Author(s): Fan, S.

Revision History

• Version 1.0: 2010-04-28
  Type: Initial release

• Version 1.1: 2011-07-13
  Changes: Version format compliance
• Version 1.2: 2017-11-01
  Changes: Refinement description
• Version 1.3: 2019-12-18
  Changes: Database references
• Version 1.4: 2024-03-20
  Changes: Data collection, Database references, Derived calculations
