3UBD

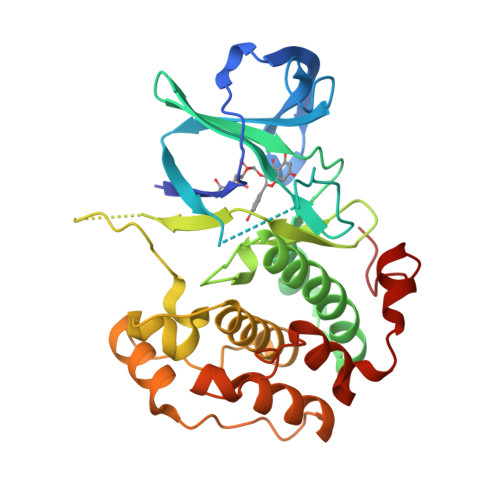

Structure of N-terminal domain of RSK2 kinase in complex with flavonoid glycoside SL0101


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.53 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.193
  • R-Value Observed: 0.195

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Insights into the Inhibition of the p90 Ribosomal S6 Kinase (RSK) by the Flavonol Glycoside SL0101 from the 1.5 A Crystal Structure of the N-Terminal Domain of RSK2 with Bound Inhibitor.

Utepbergenov, D.Derewenda, U.Olekhnovich, N.Szukalska, G.Banerjee, B.Hilinski, M.K.Lannigan, D.A.Stukenberg, P.T.Derewenda, Z.S.

(2012) Biochemistry 51: 6499-6510

  • DOI: https://doi.org/10.1021/bi300620c
  • Primary Citation of Related Structures:
    3UBD, 4EL9

  • PubMed Abstract:

    The p90 ribosomal S6 family of kinases (RSK) are potential drug targets, due to their involvement in cancer and other pathologies. There are currently only two known selective inhibitors of RSK, but the basis for selectivity is not known. One of these inhibitors is a naturally occurring kaempferol-α-L-diacetylrhamnoside, SL0101. Here, we report the crystal structure of the complex of the N-terminal kinase domain of the RSK2 isoform with SL0101 at 1.5 Å resolution. The refined atomic model reveals unprecedented structural reorganization of the protein moiety, as compared to the nucleotide-bound form. The entire N-lobe, the hinge region, and the αD-helix undergo dramatic conformational changes resulting in a rearrangement of the nucleotide binding site with concomitant formation of a highly hydrophobic pocket spatially suited to accommodate SL0101. These unexpected results will be invaluable in further optimization of the SL0101 scaffold as a promising lead for a novel class of kinase inhibitors.


  • Organizational Affiliation

    Department of Molecular Physiology and Biological Physics, University of Virginia, School of Medicine, Charlottesville, VA 22908, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ribosomal protein S6 kinase alpha-3304Mus musculusMutation(s): 0
Gene Names: Mapkapk1bRps6ka-rs1Rps6ka3Rsk2
EC: 2.7.11.1
UniProt
Find proteins for P18654 (Mus musculus)
Explore P18654
Go to UniProtKB:  P18654
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18654
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SL0
Query on SL0

Download Ideal Coordinates CCD File
B [auth A]5,7-dihydroxy-2-(4-hydroxyphenyl)-4-oxo-4H-chromen-3-yl 3,4-di-O-acetyl-6-deoxy-alpha-L-mannopyranoside
C25 H24 O12
SXOZSDJHGMAEGZ-IGKKHSBFSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
SL0 PDBBind:  3UBD Kd: 2900 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.53 Å
  • R-Value Free: 0.223
  • R-Value Work: 0.193
  • R-Value Observed: 0.195
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 98.446α = 90
b = 40.7β = 114.54
c = 83.354γ = 90
Software Package:
Software NamePurpose
SCALEPACKdata scaling
MOLREPphasing
PHENIXrefinement
PDB_EXTRACTdata extraction
SERGUIdata collection
DENZOdata reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2012-09-05
    Type: Initial release
  • Version 1.1: 2017-11-08
    Changes: Advisory, Refinement description
  • Version 1.2: 2023-09-13
    Changes: Advisory, Data collection, Database references, Derived calculations, Refinement description
