4MYT | pdb_00004myt

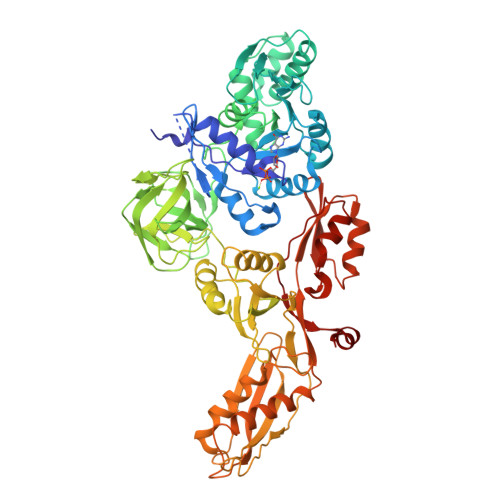

Crystal structure of elongation factor G (EFG)

• PDB DOI: https://doi.org/10.2210/pdb4MYT/pdb

• Classification: TRANSLATION
• Organism(s): Thermus thermophilus
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2013-09-28 Released: 2014-08-06
• Deposition Author(s): Liu, G., Dong, J., Gong, W., Qin, Y.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 3.50 Å
• R-Value Free:
  0.308 (Depositor), 0.310 (DCC)
• R-Value Work:
  0.207 (Depositor), 0.210 (DCC)
• R-Value Observed:
  0.212 (Depositor)

Starting Model: experimental

Literature

Crystal structure of elongation factor G (EFG)

Liu, G., Dong, J., Gong, W., Qin, Y.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 77.39 kDa
• Atom Count: 5,130
• Modelled Residue Count: 656
• Deposited Residue Count: 691
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Elongation factor G	A	691	Thermus thermophilus	Mutation(s): 1  Gene Names: fusA, fus
UniProt
Find proteins for P13551 (Thermus thermophilus) Explore P13551  Go to UniProtKB:  P13551

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
GDP	C [auth A]	GUANOSINE-5'-DIPHOSPHATE C10 H15 N5 O11 P2 QGWNDRXFNXRZMB-UUOKFMHZSA-N
MG	B [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 3.50 Å
• R-Value Free:  0.308 (Depositor), 0.310 (DCC)
• R-Value Work:  0.207 (Depositor), 0.210 (DCC)
• R-Value Observed: 0.212 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 74.875	α = 90
b = 101.356	β = 90
c = 114.385	γ = 90

Software Package:

Software Name	Purpose
CrystalClear	data collection
PHENIX	model building
PHENIX	refinement
HKL-2000	data reduction
HKL-2000	data scaling
PHENIX	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2014-08-06
Deposition Author(s): Liu, G., Dong, J., Gong, W., Qin, Y.

Revision History

• Version 1.0: 2014-08-06
  Type: Initial release

• Version 1.1: 2023-11-08
  Changes: Data collection, Database references, Derived calculations, Refinement description
