4POI

Crystal structure of a putative periplasmic protein (BACCAC_02096) from Bacteroides caccae ATCC 43185 at 2.30 A resolution

• PDB DOI: https://doi.org/10.2210/pdb4POI/pdb

• Classification: STRUCTURAL GENOMICS, UNKNOWN FUNCTION
• Organism(s): Bacteroides caccae ATCC 43185
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2014-02-25 Released: 2014-03-12
• Deposition Author(s): Joint Center for Structural Genomics (JCSG)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.30 Å
• R-Value Free: 0.279
• R-Value Work: 0.244
• R-Value Observed: 0.245

Literature

Crystal structure of a putative periplasmic protein (BACCAC_02096) from Bacteroides caccae ATCC 43185 at 2.30 A resolution

Joint Center for Structural Genomics (JCSG)

To be published.

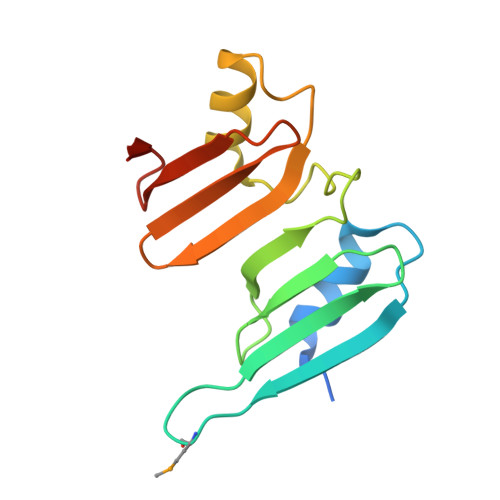

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

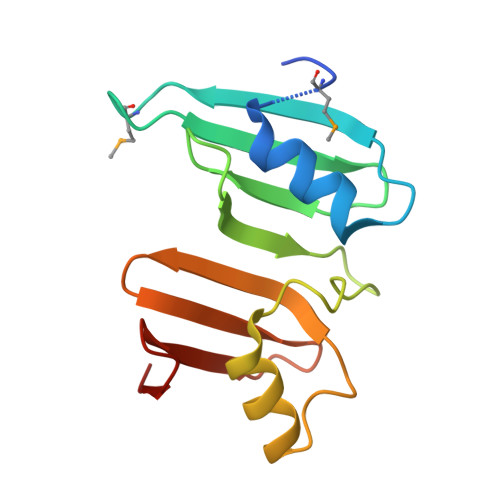

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 29.33 kDa
• Atom Count: 1,989
• Modelled Residue Count: 236
• Deposited Residue Count: 258
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Putative periplasmic protein	A, B	129	Bacteroides caccae ATCC 43185	Mutation(s): 0  Gene Names: BACCAC_02096

Small Molecules

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MSE	A, B	L-PEPTIDE LINKING	C5 H11 N O2 Se		MET

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.30 Å
• R-Value Free: 0.279
• R-Value Work: 0.244
• R-Value Observed: 0.245
• Space Group: P 4₂ 2₁ 2
• Diffraction Data: https://doi.org/10.18430/M34POI

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 104.881	α = 90
b = 104.881	β = 90
c = 56.07	γ = 90

Software Package:

Software Name	Purpose
MolProbity	model building
PDB_EXTRACT	data extraction
SHELX	phasing
SHARP	phasing
XSCALE	data scaling
REFMAC	refinement
XDS	data reduction
SHELXD	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2014-03-12
Deposition Author(s): Joint Center for Structural Genomics (JCSG)

Revision History

• Version 1.0: 2014-03-12
  Type: Initial release

• Version 1.1: 2017-11-22
  Changes: Refinement description
• Version 1.2: 2018-01-24
  Changes: Database references
• Version 1.3: 2023-02-01
  Changes: Database references, Derived calculations
• Version 1.4: 2024-10-09
  Changes: Data collection, Structure summary
