6TMD | pdb_00006tmd

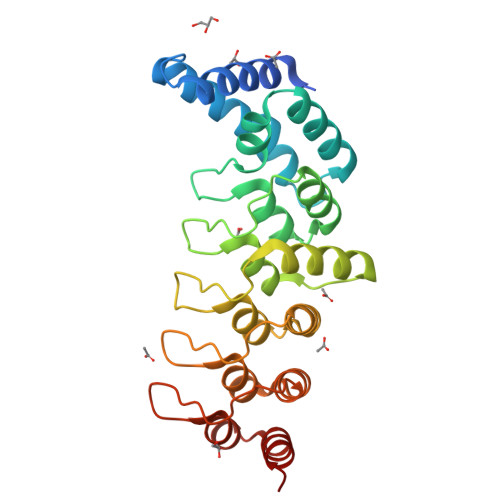

Crystal structure of KANK2 ankyrin repeats mutant (A670V)

PDB DOI: https://doi.org/10.2210/pdb6TMD/pdb

Classification: CELL ADHESION
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2019-12-04 Released: 2020-12-16
Deposition Author(s): Khan, R., Singh, A.K., Goult, B.T.
Funding Organization(s): Biotechnology and Biological Sciences Research Council, Human Frontier Science Program

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free:
0.220 (Depositor), 0.220 (DCC)
R-Value Work:
0.177 (Depositor), 0.180 (DCC)
R-Value Observed:
0.179 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

Crystal structure of KANK2 ankyrin repeats mutant (A670V)

Khan, R., Singh, A.K., Goult, B.T.

To be published.

Macromolecule Content

Total Structure Weight: 28.51 kDa
Atom Count: 2,108
Modelled Residue Count: 242
Deposited Residue Count: 256
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
KN motif and ankyrin repeat domain-containing protein 2	A	256	Homo sapiens	Mutation(s): 1 Gene Names: KANK2, ANKRD25, KIAA1518, MXRA3, SIP
UniProt & NIH Common Fund Data Resources
Find proteins for Q63ZY3 (Homo sapiens) Explore Q63ZY3 Go to UniProtKB: Q63ZY3
PHAROS: Q63ZY3 GTEx: ENSG00000197256
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q63ZY3
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain B [auth A] SDF format, chain C [auth A] SDF format, chain E [auth A] MOL2 format, chain B [auth A] MOL2 format, chain C [auth A] MOL2 format, chain E [auth A] mmCIF format, chain B [auth A] mmCIF format, chain C [auth A] mmCIF format, chain E [auth A]	B [auth A], C [auth A], E [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain E [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain E [auth A]
ACT Query on ACT Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] MOL2 format, chain D [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] mmCIF format, chain D [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A]	D [auth A], F [auth A], G [auth A], H [auth A], I [auth A]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain D [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain D [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free: 0.220 (Depositor), 0.220 (DCC)
R-Value Work: 0.177 (Depositor), 0.180 (DCC)
R-Value Observed: 0.179 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 95.778	α = 90
b = 45.659	β = 100.38
c = 51.073	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2020-12-16

Deposition Author(s):

Khan, R.

Singh, A.K.

Goult, B.T.

Funding Organization	Location	Grant Number
Biotechnology and Biological Sciences Research Council	United Kingdom	BB/N007336/1
Biotechnology and Biological Sciences Research Council	United Kingdom	BBS007245/1
Human Frontier Science Program		RGP00001/2016
