8R0N | pdb_00008r0n

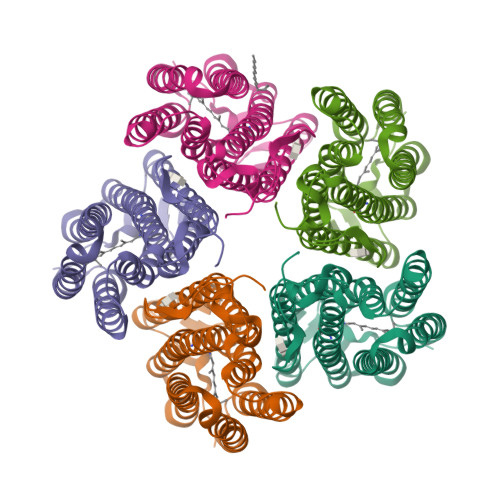

Cryo-EM structure of the microbial rhodopsin CryoR1 at pH 10.5 in detergent in the ground state

PDB DOI: https://doi.org/10.2210/pdb8R0N/pdb
EM Map EMD-18798: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Cryobacterium levicorallinum
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2023-10-31 Released: 2025-05-14
Deposition Author(s): Kovalev, K., Marin, E., Stetsenko, A., Guskov, A., Lamm, G.H.U.
Funding Organization(s): EIPOD fellowship under Marie Sklodowska-Curie Actions COFUND

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.70 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

CryoRhodopsins: a new clade of microbial rhodopsins from cold environments

Lamm, G.H.U., Marin, E., Schellbach, A.V., Stetsenko, A., Alekseev, A., Bourenkov, G., Agthe, M., Engilberge, S., Rose, S., Caramello, N., Royant, A., Schneider, T.R., Bateman, A., Wachtveitl, J., Guskov, A., Kovalev, K.

To be published.

Macromolecule Content

Total Structure Weight: 180.29 kDa
Atom Count: 10,921
Modeled Residue Count: 1,415
Deposited Residue Count: 1,625
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Rhodopsin	A, B, C, D, E	325	Cryobacterium levicorallinum	Mutation(s): 0 Gene Names: E3O11_09160
UniProt
Find proteins for A0A1I3DJQ0 (Cryobacterium levicorallinum) Explore A0A1I3DJQ0 Go to UniProtKB: A0A1I3DJQ0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A1I3DJQ0
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
LMT Query on LMT Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain J [auth C] SDF format, chain K [auth C] SDF format, chain O [auth E] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain J [auth C] MOL2 format, chain K [auth C] MOL2 format, chain O [auth E] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain J [auth C] mmCIF format, chain K [auth C] mmCIF format, chain O [auth E]	F [auth A], G [auth A], J [auth C], K [auth C], O [auth E]	DODECYL-BETA-D-MALTOSIDE C₂₄ H₄₆ O₁₁ NLEBIOOXCVAHBD-QKMCSOCLSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain J [auth C] Focus chain K [auth C] Focus chain O [auth E] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain J [auth C] Focus chain K [auth C] Focus chain O [auth E]
RET (Subject of Investigation/LOI) Query on RET Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth B] SDF format, chain L [auth C] SDF format, chain N [auth D] SDF format, chain P [auth E] MOL2 format, chain H [auth A] MOL2 format, chain I [auth B] MOL2 format, chain L [auth C] MOL2 format, chain N [auth D] MOL2 format, chain P [auth E] mmCIF format, chain H [auth A] mmCIF format, chain I [auth B] mmCIF format, chain L [auth C] mmCIF format, chain N [auth D] mmCIF format, chain P [auth E]	H [auth A], I [auth B], L [auth C], N [auth D], P [auth E]	RETINAL C₂₀ H₂₈ O NCYCYZXNIZJOKI-OVSJKPMPSA-N		Interactions Focus chain H [auth A] Focus chain I [auth B] Focus chain L [auth C] Focus chain N [auth D] Focus chain P [auth E] Interactions & Density Focus chain H [auth A] Focus chain I [auth B] Focus chain L [auth C] Focus chain N [auth D] Focus chain P [auth E]
LFA Query on LFA Download Ideal Coordinates CCD File SDF format, chain M [auth D] MOL2 format, chain M [auth D] mmCIF format, chain M [auth D]	M [auth D]	EICOSANE C₂₀ H₄₂ CBFCDTFDPHXCNY-UHFFFAOYSA-N		Interactions Focus chain M [auth D] Interactions & Density Focus chain M [auth D]
