9FTR

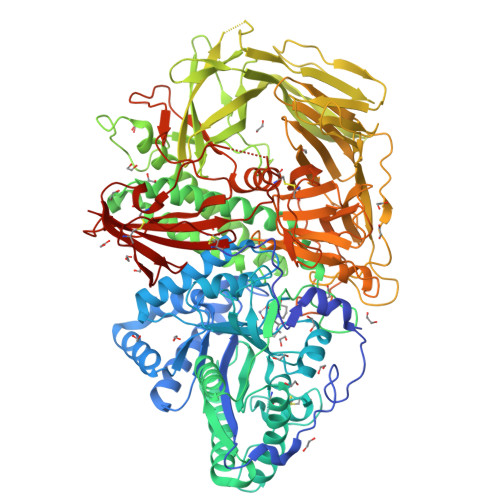

Drosophila golgi alpha-mannosidase II (dGMII) in complex with amide modified swainsonine-configured alkyl indolizidine


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.14 Å
  • R-Value Free: 0.259
  • R-Value Work: 0.179

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Structure-guided design of C3-branched swainsonine as potent and selective human Golgi alpha-mannosidase (GMII) inhibitor.

Koemans, T.Bennett, M.Ferraz, M.J.Armstrong, Z.Artola, M.Aerts, J.M.F.G.Codee, J.D.C.Overkleeft, H.S.Davies, G.J.

(2024) Chem Commun (Camb) 60: 11734-11737

  • DOI: https://doi.org/10.1039/d4cc04514a
  • Primary Citation of Related Structures:
    9FTQ, 9FTR

  • PubMed Abstract:

    The human Golgi α-mannosidase, hGMII, removes two mannose residues from GlcNAc-Man 5 GlcNAc 2 to produce GlcNAcMan 3 GlcNAc 2 , the precursor of all complex N -glycans including tumour-associated ones. The natural product GMII inhibitor, swainsonine, blocks processing of cancer-associated N -glycans, but also inhibits the four other human α-mannosidases, rendering it unsuitable for clinical use. Our previous structure-guided screening of iminosugar pyrrolidine and piperidine fragments identified two micromolar hGMII inhibitors occupying the enzyme active pockets in adjacent, partially overlapping sites. Here we demonstrate that fusing these fragments yields swainsonine-configured indolizidines featuring a C3-substituent that act as selective hGMII inhibitors. Our structure-guided GMII-selective inhibitor design complements a recent combinatorial approach that yielded similarly configured and substituted indolizidine GMII inhibitors, and holds promise for the potential future development of anti-cancer agents targeting Golgi N -glycan processing.


  • Organizational Affiliation

    Leiden Institute of Chemistry, Leiden University, Einsteinweg 55, 2333 CC Leiden, The Netherlands. h.s.overkleeft@lic.leidenuniv.nl.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Alpha-mannosidase 21,033Drosophila melanogasterMutation(s): 0
Gene Names: alpha-Man-IIaGmIICG18802
EC: 3.2.1.114
UniProt
Find proteins for Q24451 (Drosophila melanogaster)
Explore Q24451
Go to UniProtKB:  Q24451
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ24451
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1IGB (Subject of Investigation/LOI)
Query on A1IGB

Download Ideal Coordinates CCD File
B [auth A]amide modified swainsonine-configured alkyl indolizidine
C14 H27 N2 O4
SVMAJDSAUQKGEG-NAWOPXAZSA-O
ZN
Query on ZN

Download Ideal Coordinates CCD File
Y [auth A]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
C [auth A]
D [auth A]
E [auth A]
F [auth A]
G [auth A]
C [auth A],
D [auth A],
E [auth A],
F [auth A],
G [auth A],
H [auth A],
I [auth A],
J [auth A],
K [auth A],
L [auth A],
M [auth A],
N [auth A],
O [auth A],
P [auth A],
Q [auth A],
R [auth A],
S [auth A],
T [auth A],
U [auth A],
V [auth A],
W [auth A],
X [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.14 Å
  • R-Value Free: 0.259
  • R-Value Work: 0.179
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 89.113α = 90
b = 91.939β = 90
c = 133.241γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
xia2data reduction
Aimlessdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European Research Council (ERC)European Union--

Revision History  (Full details and data files)

  • Version 1.0: 2024-10-09
    Type: Initial release
  • Version 1.1: 2024-10-23
    Changes: Database references
