8HIL

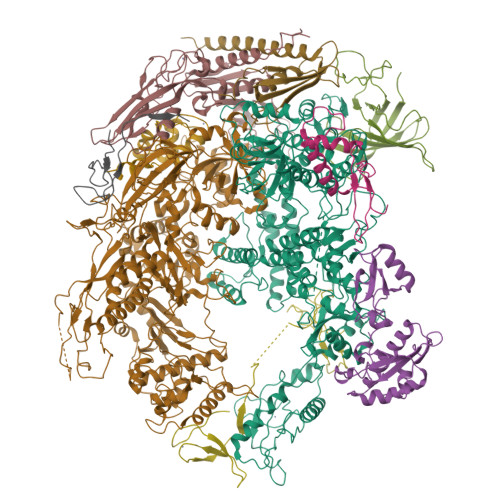

A cryo-EM structure of B. oleracea RNA polymerase V at 3.57 Angstrom


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.57 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure and mechanism of the plant RNA polymerase V.

Xie, G.Du, X.Hu, H.Li, S.Cao, X.Jacobsen, S.E.Du, J.

(2023) Science 379: 1209-1213

  • DOI: https://doi.org/10.1126/science.adf8231
  • Primary Citation of Related Structures:
    8HIL, 8HIM

  • PubMed Abstract:

    In addition to the conserved RNA polymerases I to III (Pols I to III) in eukaryotes, two atypical polymerases, Pols IV and V, specifically produce noncoding RNA in the RNA-directed DNA methylation pathway in plants. Here, we report on the structures of cauliflower Pol V in the free and elongation conformations. A conserved tyrosine residue of NRPE2 stacks with a double-stranded DNA branch of the transcription bubble to potentially attenuate elongation by inducing transcription stalling. The nontemplate DNA strand is captured by NRPE2 to enhance backtracking, thereby increasing 3'-5' cleavage, which likely underpins Pol V's high fidelity. The structures also illuminate the mechanism of Pol V transcription stalling and enhanced backtracking, which may be important for Pol V's retention on chromatin to serve its function in tethering downstream factors for RNA-directed DNA methylation.


  • Organizational Affiliation

    Key Laboratory of Molecular Design for Plant Cell Factory of Guangdong Higher Education Institutes, Institute of Plant and Food Science, Department of Biology, School of Life Sciences, Southern University of Science and Technology, Shenzhen 518055, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase V largest subunit2,032Brassica oleraceaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-dependent RNA polymerase IV and V subunit 21,169Brassica oleraceaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
RPOLD domain-containing protein319Brassica oleraceaMutation(s): 1
UniProt
Find proteins for A0A0D3D418 (Brassica oleracea var. oleracea)
Explore A0A0D3D418
Go to UniProtKB:  A0A0D3D418
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0D3D418
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC1D [auth E]230Brassica oleraceaMutation(s): 3
UniProt
Find proteins for A0A0D3DTU3 (Brassica oleracea var. oleracea)
Explore A0A0D3DTU3
Go to UniProtKB:  A0A0D3DTU3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0D3DTU3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC2E [auth F]144Brassica oleraceaMutation(s): 1
UniProt
Find proteins for A0A0D3BZZ8 (Brassica oleracea var. oleracea)
Explore A0A0D3BZZ8
Go to UniProtKB:  A0A0D3BZZ8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0D3BZZ8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC3F [auth H]146Brassica oleraceaMutation(s): 0
UniProt
Find proteins for A0A0D3DUD8 (Brassica oleracea var. oleracea)
Explore A0A0D3DUD8
Go to UniProtKB:  A0A0D3DUD8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0D3DUD8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunitG [auth I]114Brassica oleraceaMutation(s): 0
UniProt
Find proteins for A0A3P6GD79 (Brassica oleracea)
Explore A0A3P6GD79
Go to UniProtKB:  A0A3P6GD79
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A3P6GD79
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC5H [auth J]71Brassica oleraceaMutation(s): 0
UniProt
Find proteins for A0A0D3AAT3 (Brassica oleracea var. oleracea)
Explore A0A0D3AAT3
Go to UniProtKB:  A0A0D3AAT3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0D3AAT3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
RNA_pol_L_2 domain-containing proteinI [auth K]116Brassica oleraceaMutation(s): 0
UniProt
Find proteins for A0A0D3DS91 (Brassica oleracea var. oleracea)
Explore A0A0D3DS91
Go to UniProtKB:  A0A0D3DS91
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0D3DS91
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases II, IV and V subunit 12J [auth L]51Brassica oleraceaMutation(s): 2
UniProt
Find proteins for A0A0D2ZPP3 (Brassica oleracea var. oleracea)
Explore A0A0D2ZPP3
Go to UniProtKB:  A0A0D2ZPP3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0D2ZPP3
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.57 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION3.1.2
MODEL REFINEMENTPHENIX1.17.1

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other government--

Revision History  (Full details and data files)

  • Version 1.0: 2023-03-22
    Type: Initial release
  • Version 1.1: 2023-04-05
    Changes: Database references
